Graphical Parallel Projection - Isometric drawing

Isometric: from Ancient Greek σομέτρητος (isométrētos, “equal in measure”), from σος (ísos, “equal”) + μέτρον (métron, “measure”).

 There is a certain elegance to isometric drawings.

 What seems two-dimensional…

…can suggest something else.

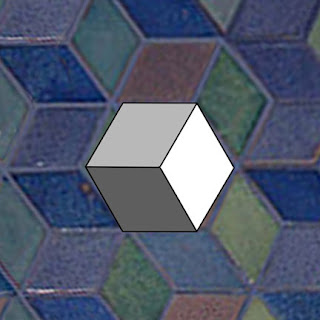

And with a little shading…

…and turning…

…can look like the real thing.

And you can use that cube…

…to construct a cylinder.

And using a cylinder in a cube…

…rotated 90 degrees into each cube face…

…gives you a sphere with the same diameter as the cylinder.

And what is this elegant technique good for? Let’s take a look.

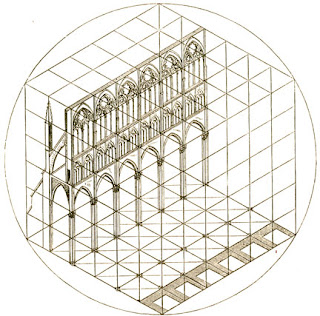

In Joseph Gwilt's Civil Architecture, from 1825, we find a proportion study of Amien Cathedral in isometric form. The view is perfect for comparing the three-dimensional modularity of the cathedral’s structure.

Auguste Choisy was a professor of architecture at the École Nationale des Ponts et Chaussées, in Paris, from 1877 to 1901. He was an authority on ancient building systems, and wrote L'art de bâtir chez les byzantins and L'art de bâtir chez les romans. The drawings above are from those two books, and are all examples of isometric drawing. Note that Choisy has provided a scale for each axis, making each drawing quite informative as well as beautiful. (I’d dearly like to get my hands on copies of these books, but the timing isn’t right [I’m planning a move] and they would be expensive.)

This isometric of a work room by Walter Gropius (1923) is also highly informative and beautiful, but in a more abstract way than Choisy’s drawings. The see-through walls and ceiling allow a viewer to easily explore the design.

 R. Buckminster Fuller’s 1927 collage presentation of the Dymaxion House does a wonderful job of describing the complex geometry of the design. Placing the isometric drawing between the plan and the elevation makes the design easy to understand. However, I would hardly call the drawing beautiful, and the repeated geometry gets old really fast.

 This isometric of water wheel gears from the book Windmills & Watermills by J. Reynolds (1970) gives a wonderfully clear idea of the watermill setup. It would take a number of plans, elevations and sections to give as much information as this single isometric. And I, for one, think the drawing is gorgeous.

 This isometric of a redevelopment plan for Rotebuhlplatz in Stuttgart, by Putz & Weber Architects, illustrates one of the obvious uses for isometrics: simple aerial views. Both this and the following two isometric studies are by Rob Krier; this aerial is from his book Urban Space (1979).

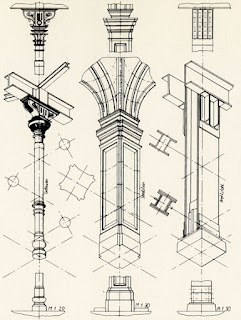

 A sheet of isometrics illustrating column types in Rob Krier’s Elements of Architecture (1983). Surrounding the isometrics with scaled elevations and plans makes this example visually informative and practically useful.

 This sheet of rough isometric sketches is also from Elements of Architecture. In each case Krier juxtaposes the isometric with a simple plan. In spite of the roughness of the drawings, I find the approach quite elegant.

 Leon Krier is the younger brother of Rob, and a well-known neo-traditional architect in his own right. The above drawing of the School at St. Quentin in Yvelines, France, shows the simple elegance and clarity of the isometric. It also shows the quirky style of architecture practiced by the Kriers in the 70s and 80s.

 In the early 80s Leon Krier worked on the “New District of Tegel” in Berlin. The presentation drawings produced for the proposal included many bird’s-eye and worm’s-eye axonometrics. The lower drawing above is a simple projection drawing of a rectilinear grid of blocks, an iconic example of the isometric. The drawing above it is a curious inverted worm’s-eye view of a complex. In spite of its multiple grids and curves, I would label it an isometric, since the main grid of columns is close to the requisite 30-degree angle. In any case, it is a wonderful bit of frippery that I loved when I first saw it years ago.

 I have done quite a few isometrics in my time. This aerial of the Franklin & Marshall College master plan by Kliment Halsband Architects is perhaps the closest to a simple aerial. It was produced by making a computer model of the campus; printing out a hidden wire-frame view; and painting in the simple materials and modeling with airbrush. It would have been as easy to make an aerial perspective, but the look of an isometric was preferred by the client.

Just to summarize…

An isometric drawing takes a rectilinear object and draws it as if seen from 45 degrees off each axis, but with no foreshortening. Measurement along each axis is easy and accurate, but any other measurement (say a diagonal across a cube’s face) needs a different scale. The advantage, obviously, is being able to see the object in three dimensions while still being able to measure the most important parts.

Finally, isometric drawing, unlike plan or elevation projection, is easily done by computer modeling. My aerial drawing for Franklin & Marshall College involved a model which could be viewed either as a perspective or as a parallel projection. I simply turned off the perspective control to create the isometric drawing.

Computer modeling opens an easy and wide range of parallel projection views, but there are areas where hand drawing is still king. The following posts on elevation projection and plan projection drawing will explore two of them.
